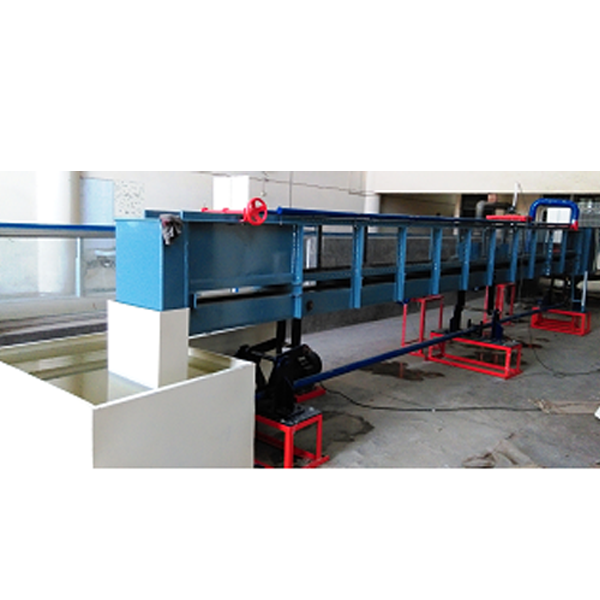

Fluid Mechanics / Hydraulic Lab Equipment,  TILTING FLUME (COMPUTERISED)

TILTING FLUME (COMPUTERISED)

Technical Specification:
   600 cm length 30 cm wide and 45 cm deep.
 Structure housing – Mild Steel.
 Sump tank (S.S.)
 The upstream and downstream sections are provided with adjustable gates with rack and
pinion arrangement.
 For visual observation of flow pattern along the flume section, both sides of flume
are provided with transparent Perspex sheet.
 Discharge of water can be collected by the help of a calibrated Orifice meter which
is connected with two pressure sensors
 Control valves and drain valve.
 G.I pipe line
 Strong M.S stand.
 The digital pointer gauge will be provided for measuring the head over the
weir the same will be connected to data logger.
 The data logger can be connected with computer through RS 232 port.
 The detailed software will be provided with detailed calculation for measure
the cd of given weir / notch.
 All data can be saved in Excel file format.
  NOTE: APPARATUS SUBJECTED TO BE CHANGE AS PER DEMAND

Pls feel free to send your requirment
