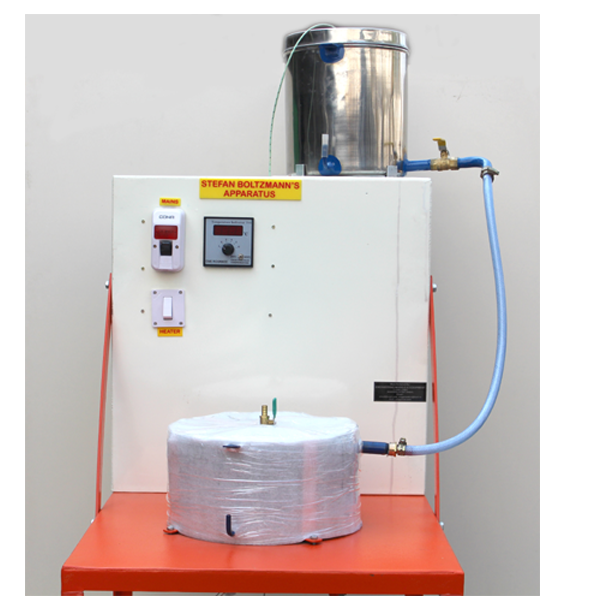

STEFAN BOLTZMANN APPARATUS

Description:
  STEFAN BOLTZMANN APPARATUS consists of a water-heated jacket of hemispherical shape. A copper
“Test Disk” is fitted at the center of the bottom portion of the hemisphere.
 Three thermocouples numbering 2, 3 & 4 are fitted in the inner part of the
hemisphere and a thermocouple (No.1) is fitted with the Test Disk.
 Hot water is obtained from the hot water tank. The hot water is then used to fill the
space between outer space of the hemisphere and the vessel surrounding it.
 A water level indicator is used to ensure that the water level is sufficiently high over
the top of the hemispherical dome.
 A stopwatch is used to measure the temperature of the Test Disk at uniform time
interval of three to five seconds.
Experimental Capabilities:
  To determine Stefan-Boltzmann’s constant.
Facilities required:- For STEFAN BOLTZMANN APPARATUS
   Electrical Supply (Single phase, 15 Amp)
 Water supply
