Redundant Joint System (Digital)

Description:

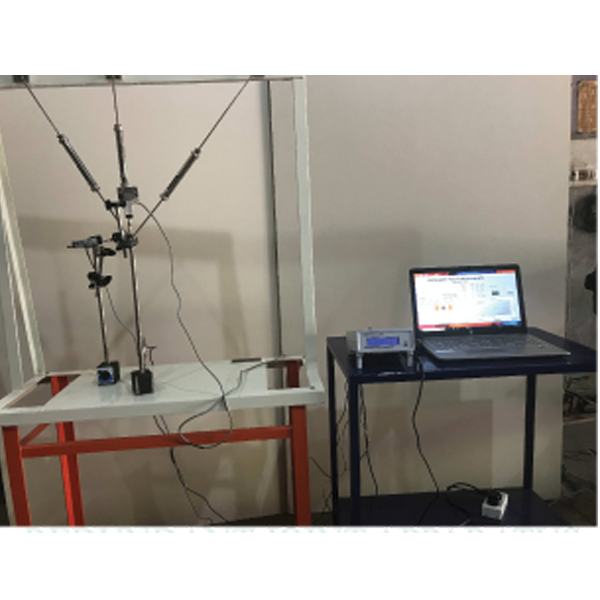

  Redundant Joint System consists of three suspension members (spring balances) of different stiffness which are jointed at a point to form the redundant joint. The upper end of the suspension members being tied in a position to a vertical wooden board. Arrangement is provided to apply a vertical load at the joint and to measure its horizontal and vertical displacement on a paper and also elongations and forces in the suspension members by the help of LVDT. Two LVDT with 25mm travel (with magnetic bases) and A Load Cell of 10 Kg. capacity with a digital Indicator is supplied with the apparatus. Digital Indicator is capable to transfer the data through USB to the computer are supplied with the apparatus. Apparatus is supplied complete with a supporting stand. Educational software also supplied with the set up to make calculation and complete results/data.


Pls feel free to send your requirment For Redundant Joint System
