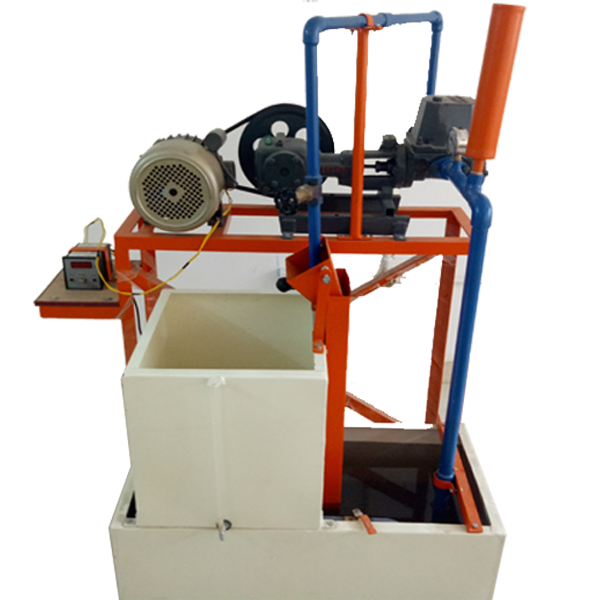

RECIPROCATING PUMP TEST RIG,

RECIPROCATING PUMP TEST RIG


Technical Specification:
  Pump – double acting reciprocating pump of 25 mm x 20 mm with max head of the pump is 5 Kg/cm2.
  Driving unit – 1 H.P. A.C motor.
  Water head measurement – A suction gauge on suction side and for delivery a pressure gauge on delivery side.
  Structure housing – Mild Steel.
  Sump tank (S.S.)
  Collecting tank (S.S.)
  Control valves and drain valves of Gunmetal.
  G.I pipe line
  Strong M.S stand.


Pls feel free to send your requirment
