REFRIGERATION AND AIRCONDITIONING LABORATORY

REFRIGERATION AND AIRCONDITIONING LABORATORY, ice plant test rig

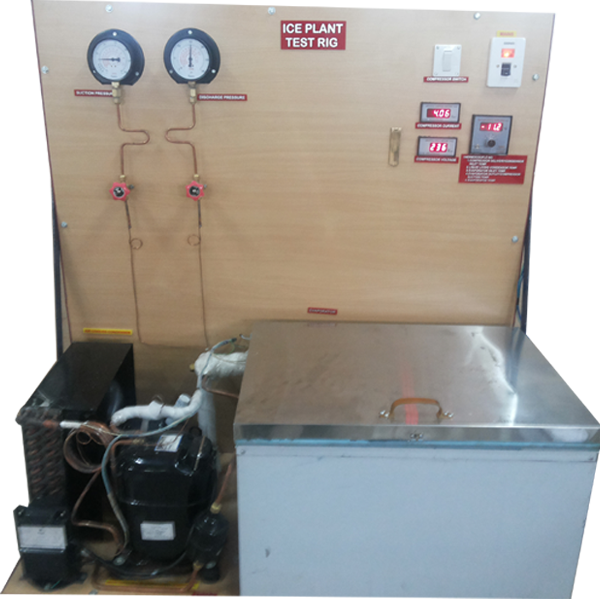

ICE PLANT TEST RIG

Size of tank
DESCRIPTION
Consisting of refrigeration cycle demonstration equipments
Compressor : : hermetically sealed kirloskar made
Condenser   Forced convection air cooled
Expansion valve   thermostatic expansion valve
Evaporator   : Immerse type direct expansion
Cooling capacity   20kg/ day
Insulation   PUF insulation
Number of ice cans   4
Size of tank   2’ x 1 ½’ x 9”
Expansion Valve   Capillary
Evaporator   Shell & coil type
Rotameter   0 – 10 lpm to measure the disch arge of water – 02 nos.
Ammeter   digital, 0 --- 10 amp ac (LC 0.01 amp)
Voltmeter   digital, 0 --- 300 v ac (LC 1v)
Temp indicato   digital, -50° to 150° C (LC 1v)


Experimental Capabilities: :
To study the Ice-plant, its working cycle and determine its COP.
  NOTE: APPARATUS SUBJECTED TO BE CHANGE AS PER DEMAND

Pls feel free to send your requirment for ice plant test rig
