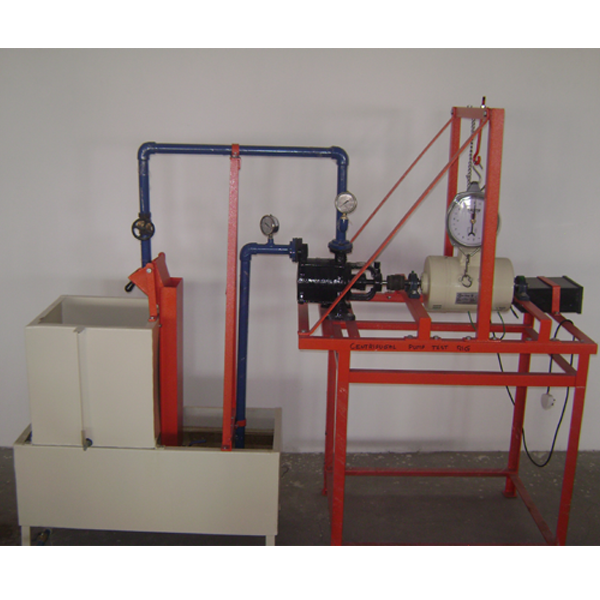

CENTRIFUGAL PUMP TEST RIG

CENTRIFUGAL PUMP TEST RIG

We are one of the foremost Manufacturers, Exporters and Suppliers of high quality CENTRIFUGAL PUMP TEST RIG and other scientific products and Apparatus.

Technical Specification:
  Pump – 1 H.P capacity, 2800 R.P.M. and 12m head.
  Driving unit – 1 H.P. motor.
  Variable speed arrangement – DC motor with variac.
  Water head measurement – A suction gauge on suction side and for delivery a pressure gauge on delivery side.
  Structure housing – Mild Steel.
  Sump tank (S.S.)
  Collecting tank (S.S.)
  Control valves and drain valves of Gunmetal.
  G.I pipe line
  Strong M.S stand.

Experimental Capabilities
  Determination of total head.
  Efficiency of pump.
  Graph to plot –
  (i) Head Vs Discharge.
  (ii) Pump efficiency


Pls feel free to send your requirment
