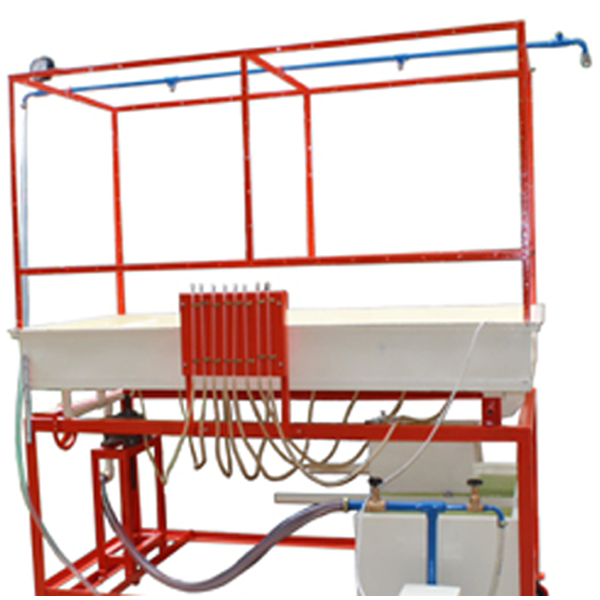

RAIN FALL SIMULATION SYSTEM
RAIN FALL SIMULATION SYSTEM,  Roorkee industries, Engineering model, Model equipments, RAIN FALL SIMULATION SYSTEM Manufacturer, RAIN FALL SIMULATION SYSTEM suppliers, Fluid Mechanics, Hydraulic Lab Equipment, emgineering models and equipments, India, Indian Market,

This unit approximately 1m x 2m in size is mainly responsible for generation and control of parameters of the simulated rainfall. It was mounted at a height of about 1.0m from the tray. 2 nos. of flow jets are used. Each jet covers a area of 100cm x 100cm. These simulation units were operated at 4 operating pressures in the range of 0.2 kg/cm2 to 0.5 kg/cm2 at an equal interval of 0.1 kg/cm2. The intensity of the rainfall, i.e. the depth of rainfall in unit time. Uniformity coefficient ( UC) provides the basis for quantitative assessment of the uniformity in the distribution of falling rainfall on an area. Drop size (Ds) of natural rainfall has been reported to vary from 2mm to 6mm and drops bigger than 6mm in size are unstable and easily break into smaller drops. The terminal velocity of spherical raindrops was calculated for different raindrop sizes at different operating pressures. For understanding seepage in rain simulator 8 tapings are provided at a distance of 20 cm from each and for measuring pressure manometer of 8 tubes is provided. An estimate of the probable maximum rate of runoff can be measured for the design of channels, drains or culverts, or to estimate maximum flood levels. For Measurement of Scouring around any model can also be performed.


There is a provision given to change the slope of the bed. By changing the slope there is effect on parameters like sedimentation and erosion of soil


tilting flum

RAIN FALL SIMULATION SYSTEM is manufactured by Engineering Models and Equipments for demonstration
RAIN FALL SIMULATION SYSTEM can be availed from us in varied different specifications as per the requirements of the clients.
